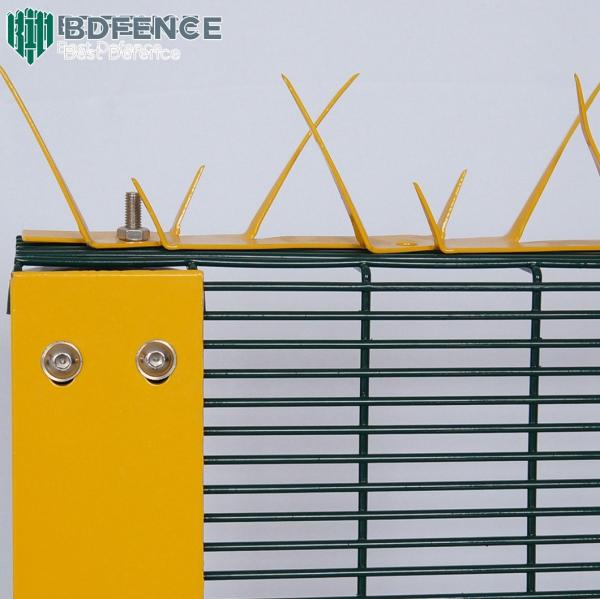

metal barbed wire mesh anti climb 358 security beta fence for
railway station
358 high security fence is a kind of high strength and high security fence. 358 high
security fence means fence panel with 3'' × 0.5'' mesh opening and
8 gauge wire diameter. The mesh opening is so small that people
can't put fingers into it and climb it. And the 8 gauge wire is so
strong that can't be cut by bolt cutters and wire cutters. 358 high
security fence is also usually used with barbed wire, razor wire
and wall spikes to further enhance the security. 358 high security
fence with higher security can be used in prison, borderline, power
plant and some places that require strong security and privacy. In
addition, our products with galvanized or PVC coating surface
treatment has good corrosion resistance.
2D 358 high security fence
2D 358 high security fence is a special 358 high security fence.
The 2D 358 high security fence panels have double horizontal wires
at 152.4 mm centre. This structure make it more strength than the
normal 358 high security fence.
3D 358 high security fence
3D 358 high security fence is very similar to the 358 high security
fence. It also has anti-climb and anti-cut structures. But 3D 358
high security fence has special "V" shaped appearance. It combine
the aesthetics and security.
Product Description
Anti climb fence is a kind of high security fence,its hole is so
small that people can't pass it through fingers,so it has high
security, anti-theft and other characteristics,we also have
matching barbed wire, razor wire,electric wire and other
products,please contact us any time if you want to know more.
| Product specification |
Fence Panel | Length | 2m,2.5m,3m,etc |
| Height | 1.8m,2m,2.4m,etc |
| Wire Diameter | 4mm,5mm,etc |
| Mesh Size | 76.2mm×12.7mm |
Fence Post (Square) | Size | 60x60mm,60x80mm, 60x120mm, 80x80mm |
| Thickness | 1.5/1.8/2.0/2.5/3.0mm, etc. |
| Height | usually 500mm longer than fence |
| A | HEIGHT: 1200mm / 1400mm / 1600mm / 1800mm / 2000mm / 2200mm |
| B | WIDTH: 1500mm / 2000mm / 2500mm |
| C | WIRE THICKNESS: 3.0mm,4.0mm / 4.0mm,4.0mm |
| D | MESH SIZE: 76.2mm*12.7mm / 75.0mm*12.5mm / 100mm*15mm |
| E | POST: Square Post (40mm*60mm / 60mm*60mm / 60mm*80mm) |
| F | CLAMP: Metal Clamp / Flat Bar Covered |
| G | POST CAP: Metal Cap / Anti-UV Plastic Cap |
Fence application case
Production process
Packaging & Container Loading
Fence packaging
<1>Plastic film at the bottom to avoid the panel be destroyed
<2>4 metal corners to ensure the panel strong and uniform
<3>wood plate at the top of pallet to keep the under panel
<4>pallet tube size:40*80mm tubes at the botom vertical
position
Customized service
Customized service is also available for us. We can customize
products according to your requirements, including design and
drawing.
After-sales service
Our after-sales service start immediately after signing the
contract.
1. No matter FOB or CIF the price term is we would try our best to
find a lowest freight cost for customers' reference.
2. The third-party inspection always gets real and true data from
us and we will send production photos to customers if there is no
inspection from the third-party.
3. Do our best to help customer arrange the shipment and customs
clearance.
4. Installation, maintenance and repair instructions with full
information.
5. 3-20 years warranty depends on different products and using
environment.
Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L.
Or 100% L/C at sight Or 30%deposit,70% L/C at sight
Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the
customers,and professional recommendation will be offered to
customers.
