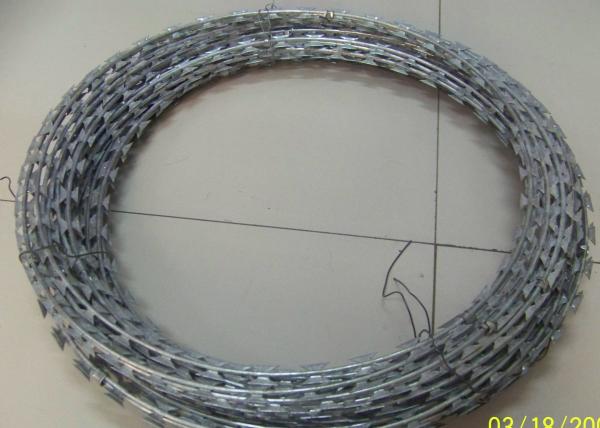

Concertina Bto-22 Type 2.5mm Razor Barbed Wire

    Buy cheap Concertina Bto-22 Type 2.5mm Razor Barbed Wire from wholesalers

    Buy cheap Concertina Bto-22 Type 2.5mm Razor Barbed Wire from wholesalers
    • Buy cheap Concertina Bto-22 Type 2.5mm Razor Barbed Wire from wholesalers
    • Buy cheap Concertina Bto-22 Type 2.5mm Razor Barbed Wire from wholesalers

    Concertina Bto-22 Type 2.5mm Razor Barbed Wire

    Ask Lasest Price
    Brand Name : HGMT
    Model Number : GF114
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000meter per week
    Delivery Time : 20-25days
    • Product Details
    • Company Profile

    Concertina Bto-22 Type 2.5mm Razor Barbed Wire

    Hot Selling Low Price Concertina BTO-22 Type Razor Barbed Wire


    Product Description


    It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel
    sheets or stainless steel sheets.


    Specifications


    Razor Wire Size Specifications
    Peference Model
    Thickness (mm)
    Wire Diameter (mm)
    Barb Length
    (mm)
    Bard Width
    (mm)
    Bard Spacing
    (mm)
    BTO-12
    0.5±0.05
    2.5±0.1
    12±1
    15±1
    26±1
    BTO-15
    0.5±0.05
    2.5±0.1
    18±1
    15±1
    33±1
    BTO-22
    0.5±0.05
    2.5±0.1
    02±1
    15±1
    34±1
    BTO-28
    0.5±0.05
    2.5±0.1
    28
    15
    45±1
    CBT-30
    0.5±0.05
    2.5±0.1
    30
    18
    45±1
    CBT-60
    0.6±0.05
    2.5±0.1
    60±2
    32±1
    100±1
    CBT-65
    0.6±0.05
    2.5±0.1
    65±2
    21±1
    100±1
    Outside Diameter
    No. of Loops
    Standard Length per Coil
    Razor Type
    Notes
    450mm
    33
    7M-8M
    CBT-60, 65
    Single Coil
    500mm
    56
    12M-13M
    CBT-60, 65
    Single Coil
    700mm
    56
    13M-14M
    CBT-60, 65
    Single Coil
    960mm
    56
    14M-15M
    CBT-60, 65
    Single Coil
    450mm
    56
    8M-9M (3clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    500mm
    56
    9M-10M (3clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    600mm
    56
    10M-11M (3clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    600mm
    56
    8M-10M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    700mm
    56
    10M-12M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    800mm
    56
    11M-13M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    900mm
    56
    12M-14M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    960mm
    56
    13M-15M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type
    980mm
    56
    14M-16M (5clips)
    BTO-10, 12, 18, 22, 28, 30
    Cross Type

    Feature


    Anticorrosion, prevent aging, sun resistance, weather resistance, etc. Corrosion forms of electroplating, hot dip.


    Packing terms


    Panel all packing with the pallet (steel pallet or wooden pallet)

    in bulk
