Erosion Control Retaining Wall PVC Coated Gabion Mesh Box

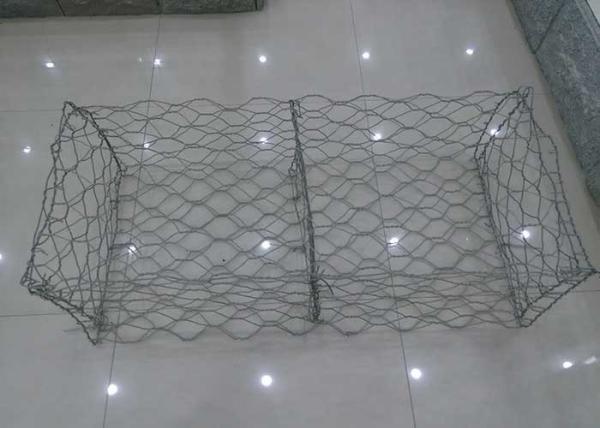

Gabion Box Details
Widely used for making slope, rock,slope vegetation,rail-way or
highway guardrail mesh stable. Also it can be made into basket,
mesh mat for protecting dam which easily ruined by flood and lead
to property losses. Therefore, application of gabion basket is the
best solution of solving the problem that give dams lasting
protection.
1. Gabion box materials: Hot dipped galvanized wire and PVC coated
galvanized wire, Galfan coated wire
2. Gabion box mesh wire: 2.0mm, 2.2mm, 2.7mm, 3.0mm,
3. Gabion box selvage wire: 2.4mm, 2.7mm, 3.4mm, 3.9mm
4. Gabion box mesh size: 6*8cm, 8*10cm, 10*12cm, 12*15cm
5. Gabion box lacing wire: 2.2mm, 5% of gabion weight
6. Gabion box Zinc coating: 225-275g/m2 according to EN 10224-2
7. Gabion box size: 1x1x1m, 2X1X0.5m, 2X1X1m, 3X1X1m, 4X2X0.5m,
6X2X0.3m
8. Gabion box Steel according to EN 102182, Tensile strength
between 380N/mm2 and 500N/mm2
Gabion Box Specifications:
| Materials | Mesh wire | Selvage wire | Tie wire | Mesh size | Length | Diaphragm | Width | Height |
Galvanized wire Galfan wire PE/PVC coated wire | 1.8mm 2.0mm 2.2mm 2.4mm 2.7mm 3.0mm | 2.4mm 2.7mm 3.0mm 3.4mm 4.0mm | 2.0mm 2.2mm 2.4mm | 60x80mm 80x100mm 100x120mm | 1.0m 2.0m 3.0m 4.0m 5.0m 6.0m | No 1 2 3 4 5 | 0.5m 1.0m 1.5m 2.0m 3.0m | 0.3m 0.5m 1.0m 1.5m |
| Extra tie wire: 2% weight of gabion box |
Gabion Box Applications
- Gabion Box can be used as protective fences around your properties or as a
support on slopes or paths. Single stone baskets can be used in
your garden to design different fences around fireplaces, as base
constructions for garden benches or bars, or to surround and
decorate ponds or plants. You can even use them as a decorative
support for climbing plants. Metal mesh baskets are made of firm
wire.
- Control and guide of water or flood
- Preventing of rock breaking
- Rock fall protection
- Water and soil protection
- Bridge protection
Features
1. Easy to Install
Align wire mesh with the spiral pole to form a single structure,
the pole will fall down automatically by itself; no tools
necessary.
2. High Quality Material
Made of galvanized steel wire, resistant to rust and corrosion;
with grids evenly spaced at 5 x 10 cm and hooks to fasten and keep
the original shape, gabion is solid and durable.
3. Multi Purpose Use
Can be used as partitions for a retaining wall, fencing, garden
decoration; road building or stabilizing inclines against erosion.
4. Cost Effective
Replace traditional walls to save cost and time, easy to operate
and has an appealing look.
5. Custom Fillers
Materials for filler based on your need, cobblestone, rock, brick
fragments, concrete and wood blocks; lights, flowers or plants can
be added for decoration and as the highlight of your yard.
6. Soft structure
Exactly adapt to any changing of slope but not ruined by it, which
more stable than rigid structure.
7. Strong capacity of Anti-scour
Even reach to 6m/s.
8. The structure has permeability essentially
Which let ground water leak while Precipitate suspended matter,mud
to stay in the stone gaps, thus plants grow, restoring previous
ecology.
Packing:
1. carton box or on pallet or bundle on the pallet
2. according to customers' request.
Service
1: Product Service
Our products offer 10 YEARS GUARANTEE.
2: Product customization services
We can customize products according to your requirements, including
design and drawing.
3: After-sales service
Our after-sales service start immediately after signing the
contract.
1.No matter FOB or CIF the price term is we would try our best to
find a lowest freight cost for customers' reference.
2.The third-party inspection always gets real and true data from us
and we will send production photos to customers if there is no
inspection from the third-party.
3.Do our best to help customer arrange the shipment and customs
clearance.
4.Installation, maintenance and repair instructions with full
information.
