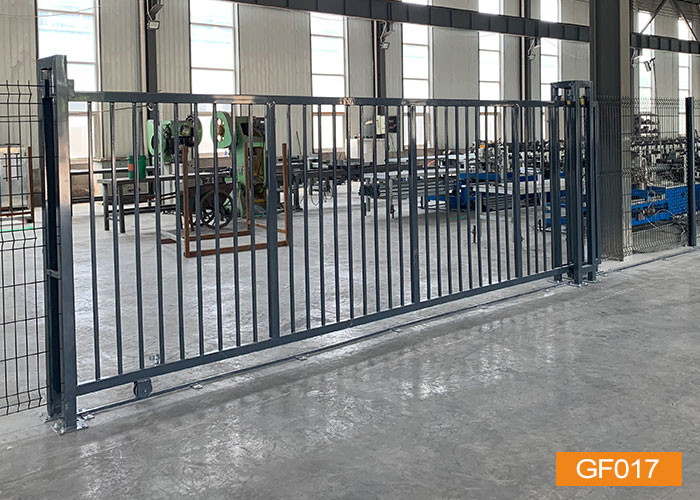

Ral7016 Powder Coated Welded Sliding Metal Garden Fence Gate
Sliding garden gate Description
Sliding garden gate products offer an efficient entry to your residential or light
commercial property.our sliding gate is a whole system design with
gate panel,guide post,bottom wheel,support wheel,pathway,if
requires for a electrically operated gate,motor,rack,comtrol box
and other all necessary accessories also avaiable. it's flowing
lines,simple and beautiful and full of rich modern residential
sensual,garden light,villas era of high-grade,simple
installation,easy maintenance,easy to clean,affordable,eliminating
maintenance.
sliding gates are great for applications with space
restrictions,swing gate require 12" to 14" of room for a gate to
swing into your property,sliding gates run on the back side of a
fence line which great for properties that have width but not
depth. it can be usded to country house.park,farm,vliladom,industry
entrance and so on
Sliding garden gate Specification
Panel Specifications
| Width | Height | Frame pipe | Post size | Mesh inside | Tube inside |
| size | Thickness | Size | Thickness | Wire Dia. | Hole size | Pipe size | Distance |
2m
3m
4m
6m
8m | 1m
1.2m
1.5m
1.8m
2m
2.2m
2.4m | 40*60mm
50*50mm
60*60mm
60x80mm | 1.5mm
2.0mm
2.5mm |
60x60mm
80x80mm
100x100mm |
1.8mm
2.0mm
2.5mm
3.0mm | 4mm
5mm
6mm | 50x100mm
50x200mm
75x150mm
75x200mm
10Ox200mm | 20x20mm
20x30mm | 100mm
120mm
140mm |
| Surface treatment | 1.Hot-dipped galvanized after black wire and tube welded
2.Powder coated aftergalvanized wire and tube welded |
- Gate Frame:The type of the vertical , double leaf
- Height of the gate (m):1.0,1.2,1.5,1.8,2,2.2,2.4m
- Width of the gate(m):Double leaf :2,3,4,5,6,8m
- Gate frame: Square tubes : 40x40mm,50x50mm, 60x60mm, 40x60mm
- other type can be produces according to your requirement .
- Surface treatment: Galvanized Steel pipe+Powder Coated
- Color : RAL 6007 colors
Sliding garden gate Feature and Benefits
· Aesthetically pleasing
· Rust and corrosion proof powder coat finish
· Variety of powder coat finish colours
· Prevents unauthorised access of vehicles and persons
Processing
First, the raw materials of galvanized pipe shall be purchased
according to the requirements of customers, and the staff
shall carry out the zinc loading test. After the test is qualified, the size shall be cut, then the welding
shall be carried out
according to the drawings, the painting shall be carried out after the welding, the trial installation
shall be carried out
after the fabrication, and finally the packing and packing shall be carried out according to the
requirements of customers.
How to install it?
1)When installing your fence gate, leave adequate space between two
of your posts for a gate.
2) Attach the hinges to your gate, one near the gate's top and one
near the bottom (just like the hinges on a door).
Hold the gate in the spacing between your posts. Please some scrap
blocks of wood under the gate
3) With your gate in place, use a power drill to screw the hinges
into your fence post.
4)Your latch should be separated into two pieces: a more a complex
catching mechanism and a simple hook
5) Situate the hook on your gate, and align it with the catching
mechanism. Use your power drill to screw the hook into the gate
Service
1: Product Service
Our products offer 10 YEARS GUARANTEE.
2: Product customization services
We can customize products according to your requirements, including
design and drawing.
3: After-sales service
Our after-sales service start immediately after signing the
contract.
1.No matter FOB or CIF the price term is we would try our best to
find a lowest freight cost for customers' reference.
2.The third-party inspection always gets real and true data from us
and we will send production photos to customers if there is no
inspection from the third-party.
3.Do our best to help customer arrange the shipment and customs
clearance.
4.Installation, maintenance and repair instructions with full
information.
Packaging & Delivery
- Selling Units:Single item
- Single package size:180X100X5 cm
- Single gross weight:80.000 kg
- Package Type:in carbon box, in pallet
- Lead Time :
| Quantity(Sets) | 1 - 1000 | >1000 |
| Est. Time(days) | 12 | To be negotiated |
